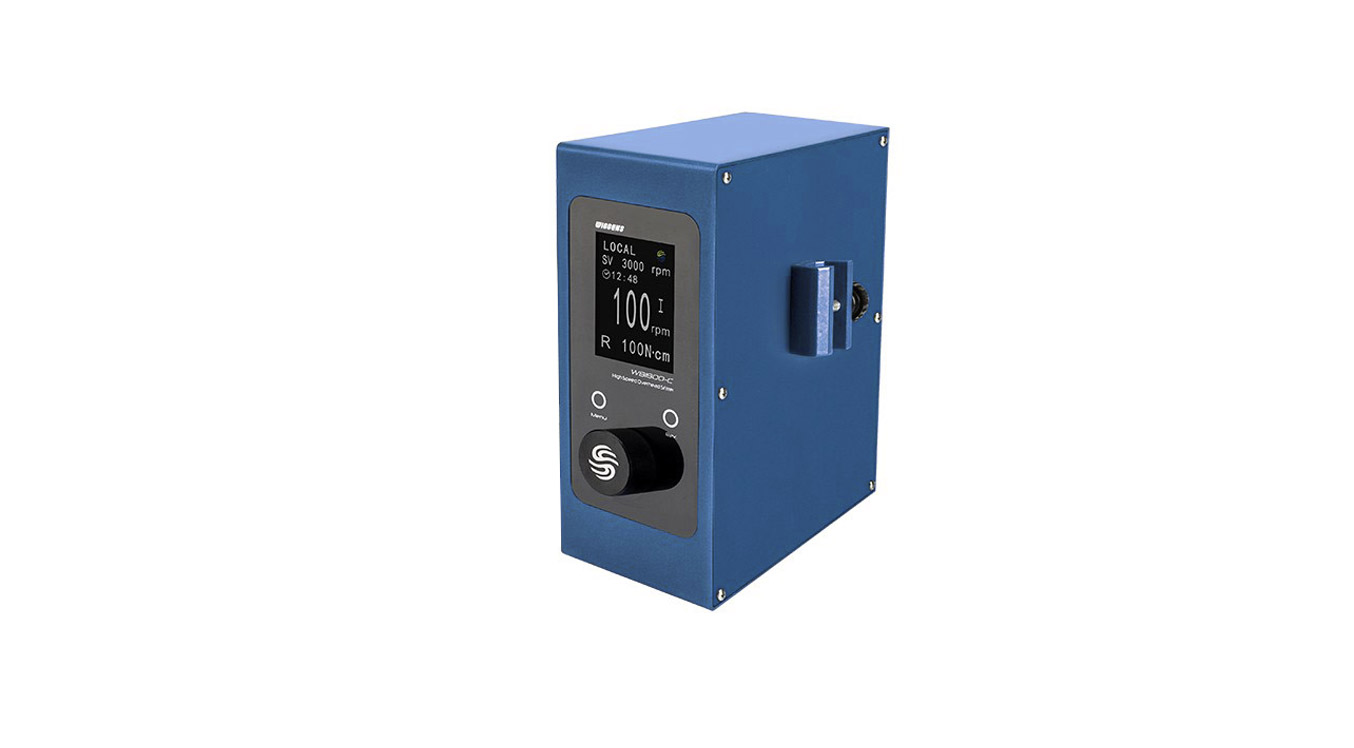

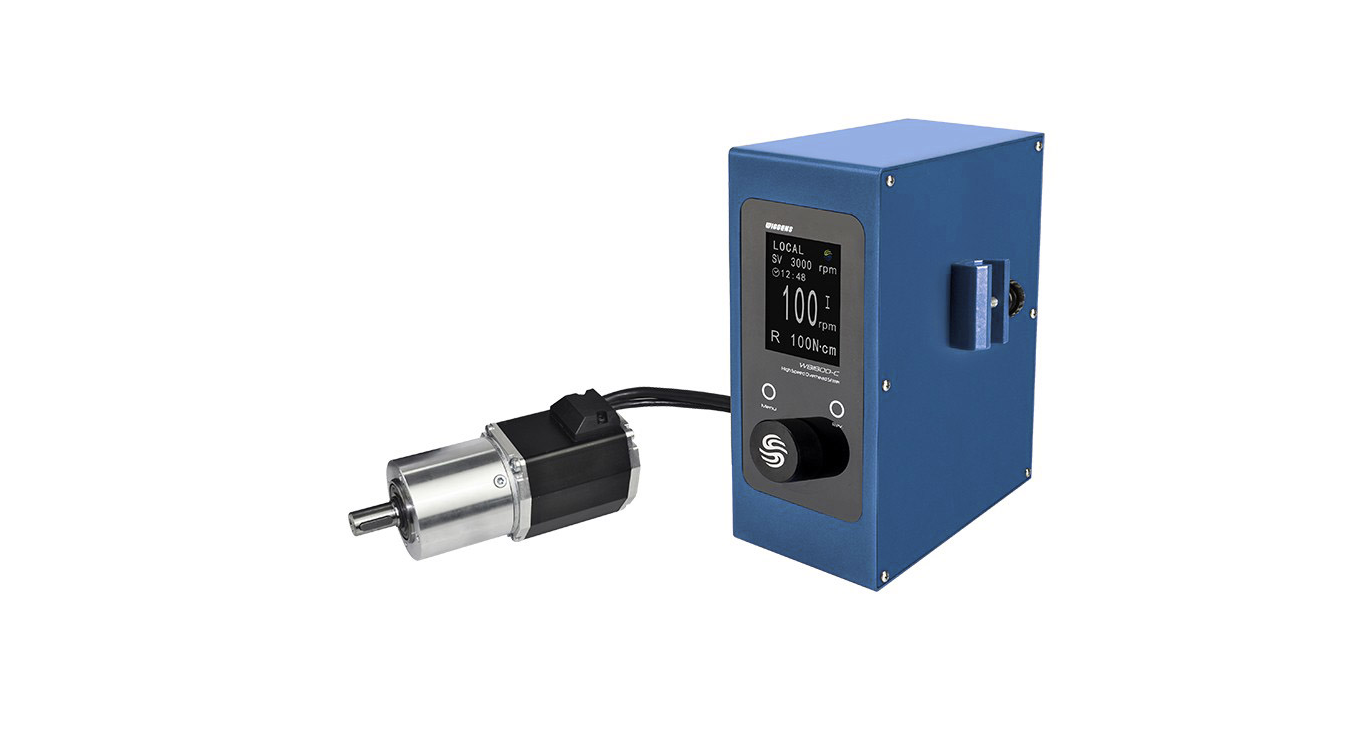

WB3000-EC Overhead Stirrer

Description:

* Suitable for reaction systems and other high torque / high speed applications
* Set speed can be maintained when viscosity of liquid changes
* Brushless DC motor made in Germany, for high performance stirring processes
* Maintenance-free
* Quiet and reliable
* Digitally adjustable rotation speed and direction
* Remote controller can display actual speed and actual torque as well as the set speed
* Digital (RS-232/485) and analog communication available for remote PC or PLC control

Performance
* Years of vibration-free and silent operation.
* Powerful torque capable of handling high viscosity tasks.
* Maintenance of constant motor speed by control system even under conditions of changing viscosity.
* Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
* Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.

Technical Data:

Model WB3000-EC
Control Type TFT Display for Speed and Torque and On-Touch Control
Torque Display Stirrer converts output current to torque, reflecting the changing load of motor
Speed Range (rpm) 70-3000
Speed Accuracy(rpm) ±1
Maximum Viscosity (cps) 200000
Maximum Torque (N-cm) 410
Rated Torque (N-cm) 116
Maximum Capacity (L) H2O 100
Power (W) 450
Dimensions (W × L × H in mm) 165×75×75
Motor Weight (Kg) 2.8
