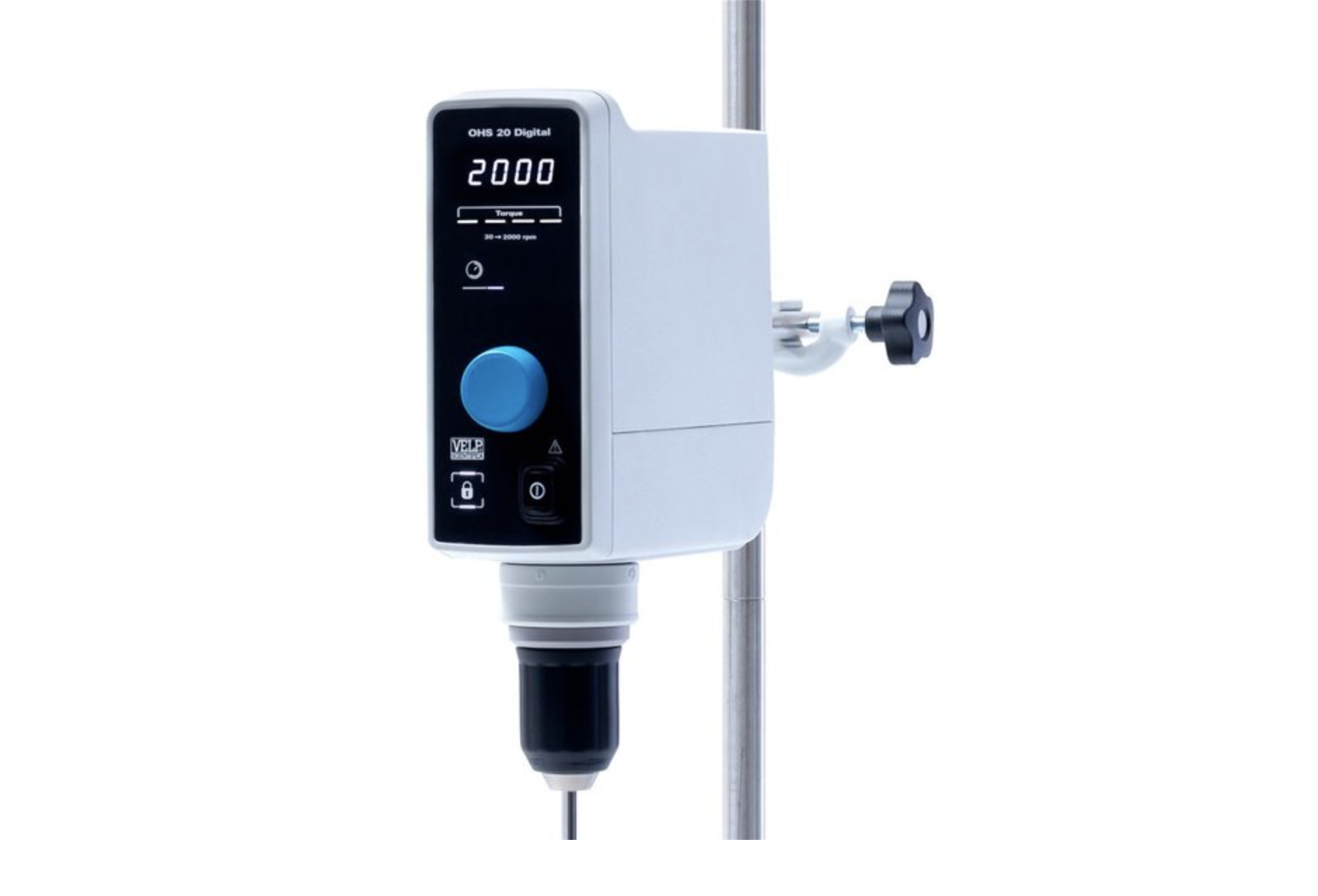

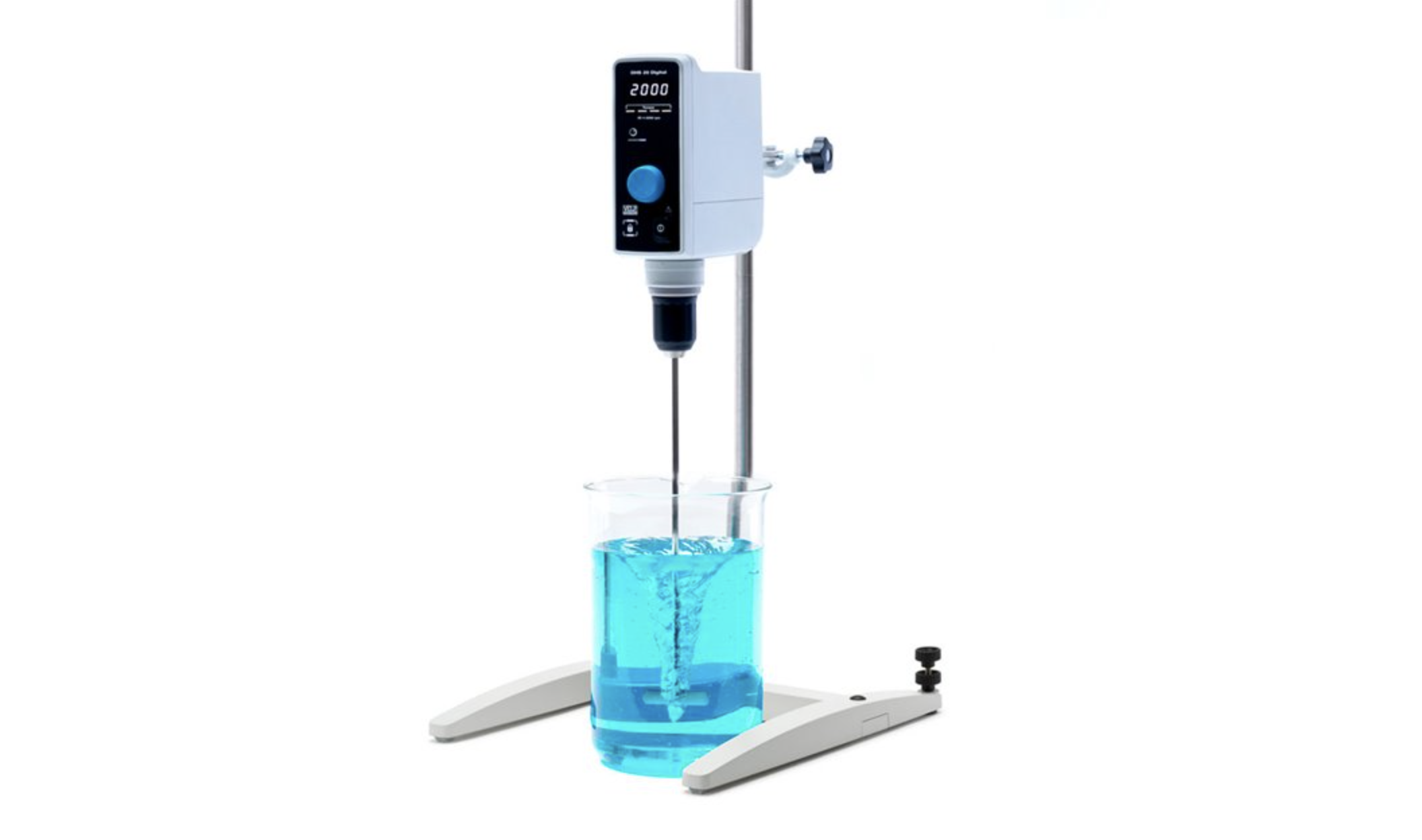

OHS20 Digital Overhead Stirrer

Description;

OHS 20 Digital is designed to guarantee the highest safety standards. The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.

Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time and stop stirring for maximum safety in your lab.

Safe start and stop knob operation and lock key avoid unintended stat up and changes of the working conditions.

Technical Data;

Display Digital Display
User Interface Digital
Motor Brushless DC
Stirring Volume (H2O) Up to 25 L
Speed Gears 1
Max Torque 20 Ncm
Stirring Speed Range 30-2000 rpm
Speed Accuracy 1 rpm
Speed Control Digital
Max Viscosity 10.000 mPa*s
Torque Compensation SpeedServo
Chuck Range Ø from 1 to 13 mm
Shaft Diameter Pass-Through Up to 8.5 mm
Timer Yes
Lock Of The Instrument Yes
Interfaces USB
Dimensions (WxHxD) 90x285x235 mm
Weight 4,1 kg
PROTECTION CLASS DIN EN 60529 IP 54
