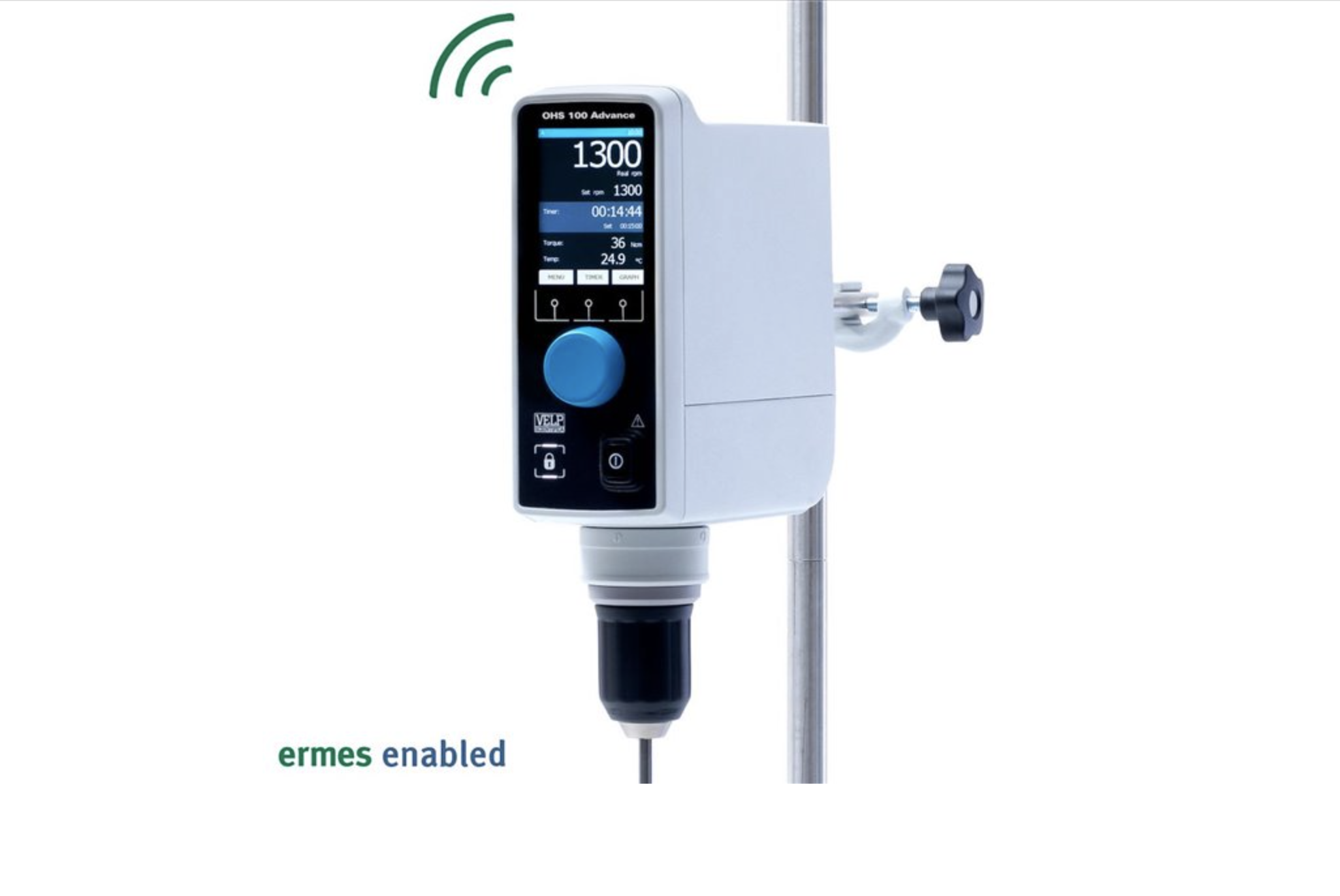

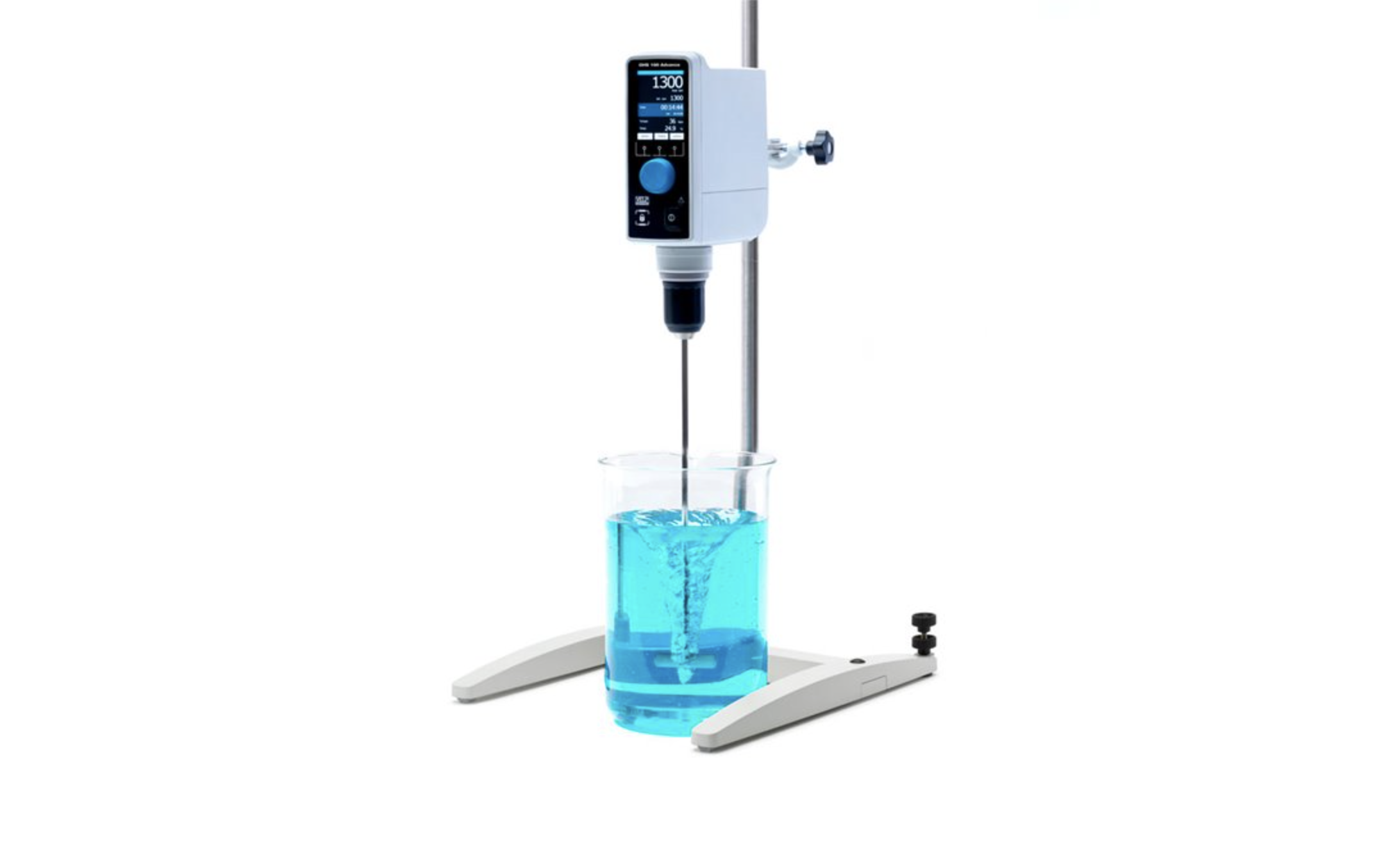

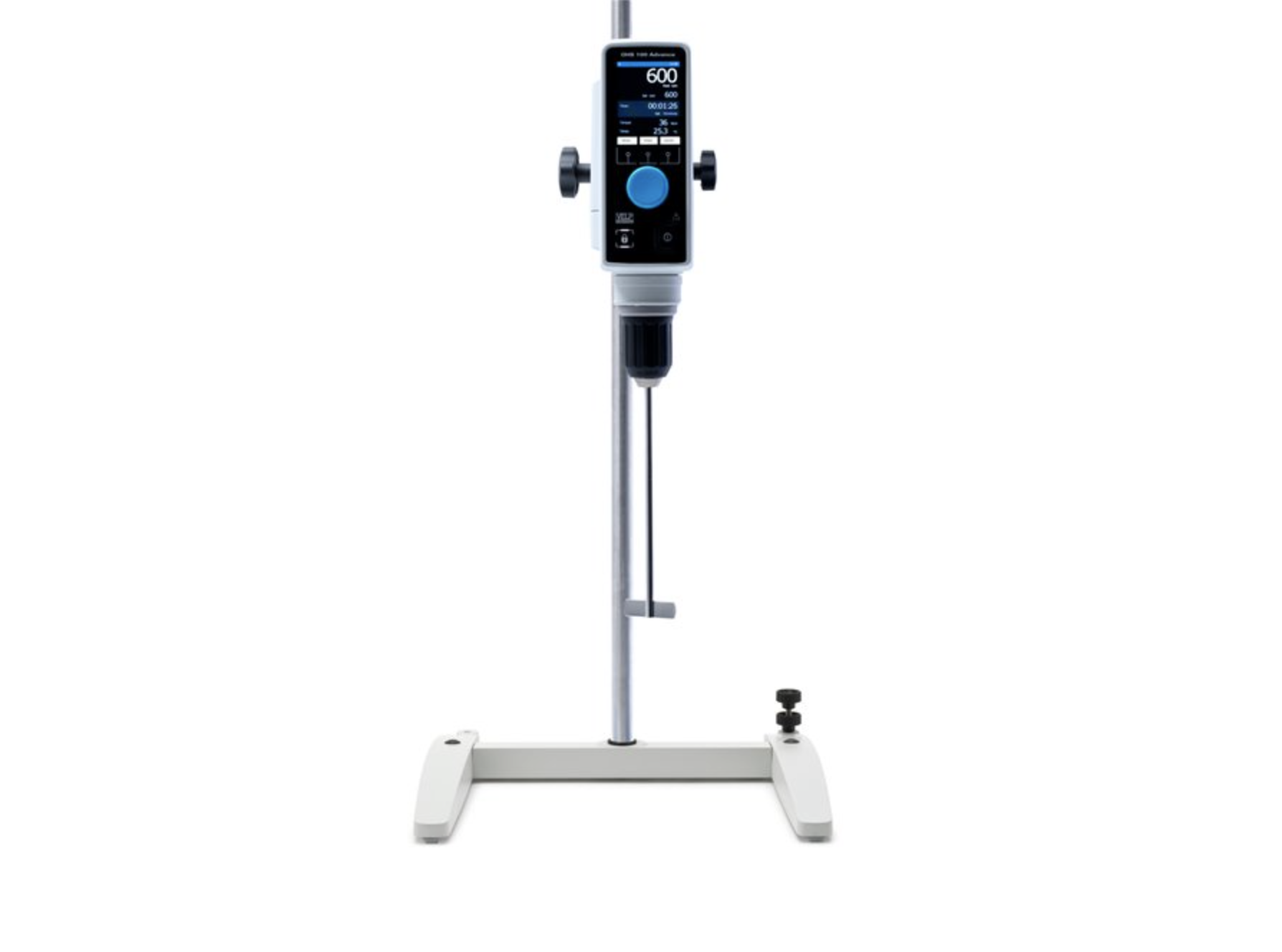

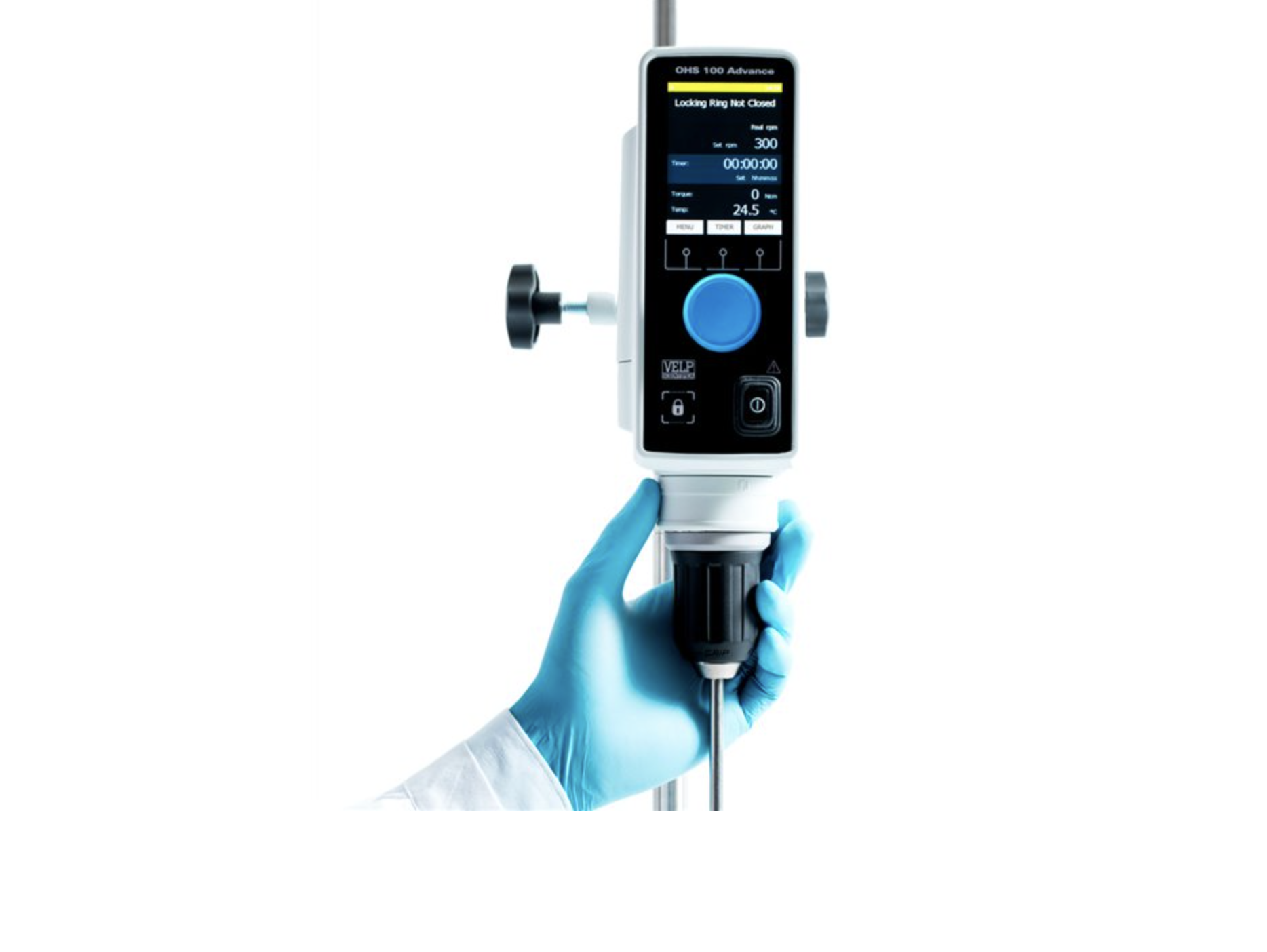

OHS100 Advance Overhead Stirrer

Description;

*OHS 100 Advance is the VELP high-end overhead stirrer designed to guarantee the highest safety standards.
*The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
*Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time by stopping the stirring
*Safe start and stop knob operation and lock key avoid unintended start up and changes of the working conditions.
*Integrated vibration sensor with different levels of sensitivity will stop the operation and inform you to be sure that your OHS is stable and properly fixed.

Technical Data;

Display 3,5" Graphic TFT Display
User Interface Digital
Motor Brushless DC
Stirring Volume (H2O) Up to 100 L
Speed Gears 1
Max Torque 100 Ncm
Stirring Speed Range 30 – 1300 rpm
Speed Accuracy 1 rpm
Speed Control Digital
Max Viscosity 70.000 mPa*s
Torque Compensation SpeedServo
Chuck Range Ø from 1 to 13 mm
Shaft Diameter Pass-Through Up to 8.5 mm
Safety Vibration Sensor Yes
Timer Yes
Method Setting Yes
Lock Of The Instrument Yes
External Probe Connection Pt 100
Temperature Measuring Range -200 to 550 °C
Temperature Resolution 0.1 °C
Interfaces USB/Wi-Fi
Dimensions (WxHxD) 90x315x235 mm
Weight 4,6 kg
Protection Class DIN EN 60529 IP 54
