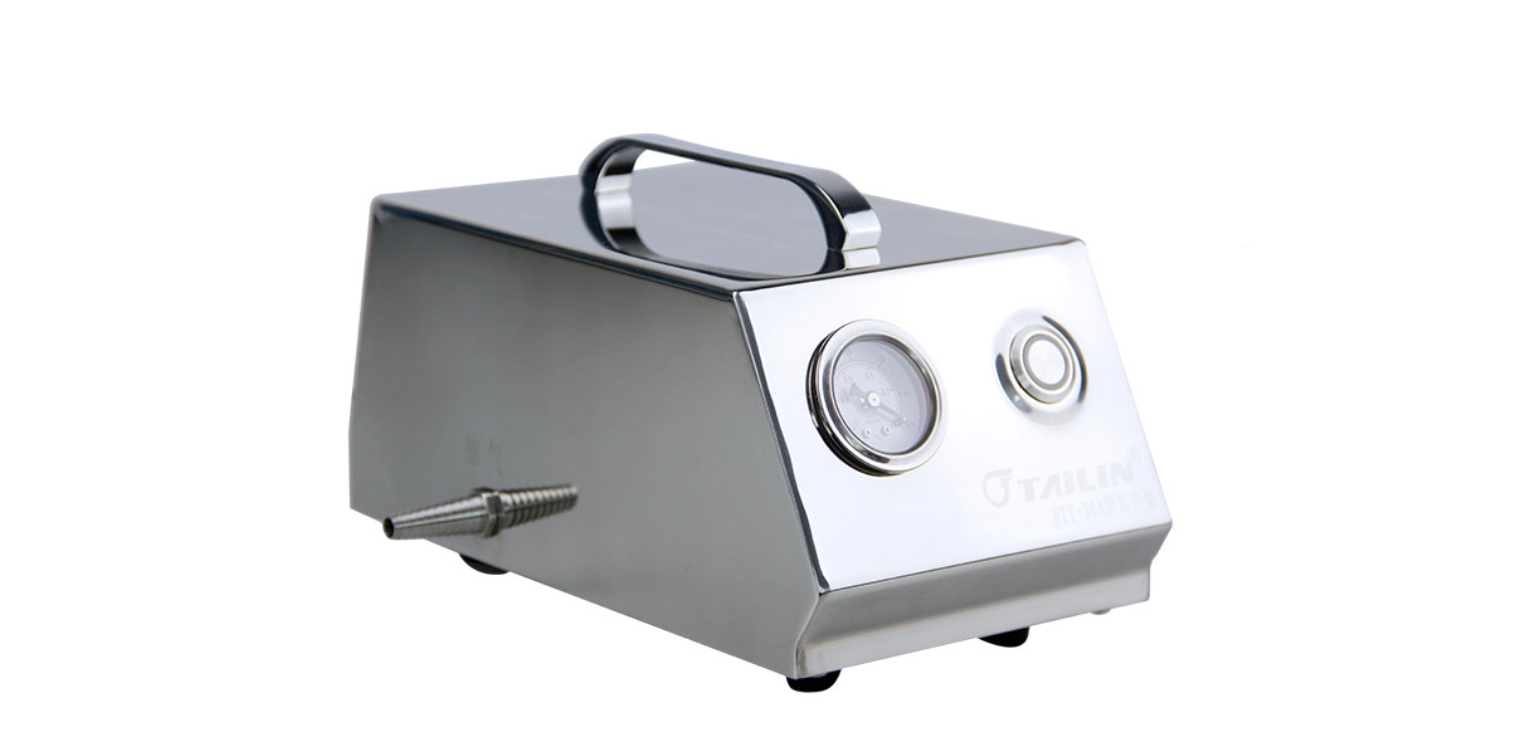

Microbial Test Vacuum Pump HTY-30A

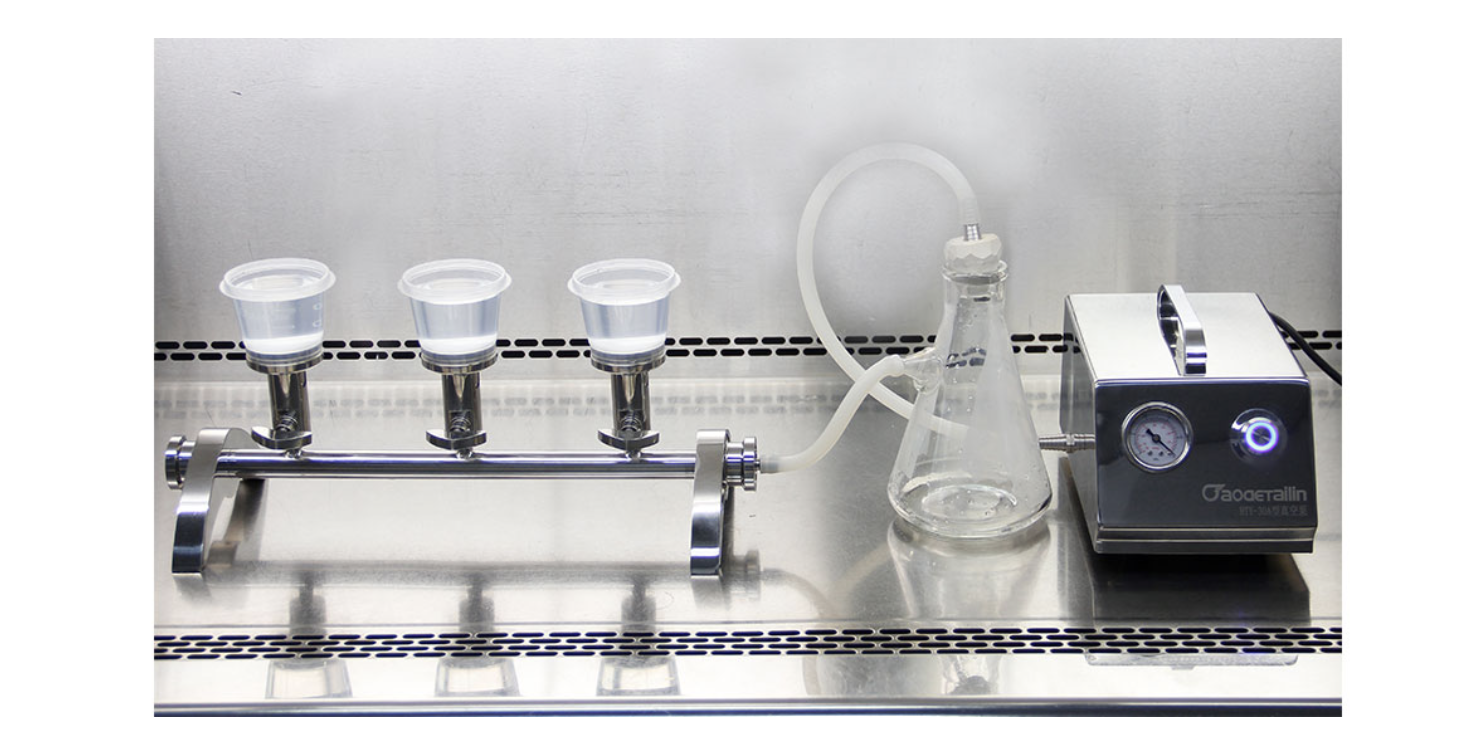

The HTY-30A diaphragm pump is designed for laboratory purpose.When using together with microbial test manifod and filtration funnel, it could realize fast suction filtering

Features

• Vacuum pump should use the filter flask for suction filtration
• Small size, suitable for use in laminar flow hood
• Low noise
• Easy to clean and disinfection

Technical Parameters

Power supply: AC 220V/50Hz

Power consumption: 30W

Pumping flow: ≥25L/min. (air flow)

Drainage silicone tube: inner diameter is Φ7mm～Φ9mm

Noise: ≤65dB(A) (load condition)

Vacuity: 30KPa (Absolute pressure); - 70KPa (Relative pressure)

Net Weight: 3.0kgs

Dimensions: 14.0cm x 25.0cm x 11.0cm

Applications

• Laboratory suction filtration
• Used together with manifold, filtration funnel and filtration membrane
