English DLab HCM100-Pro
Description;
Thermo Mix series integrates precise and efficient heating & cooling and mixing function

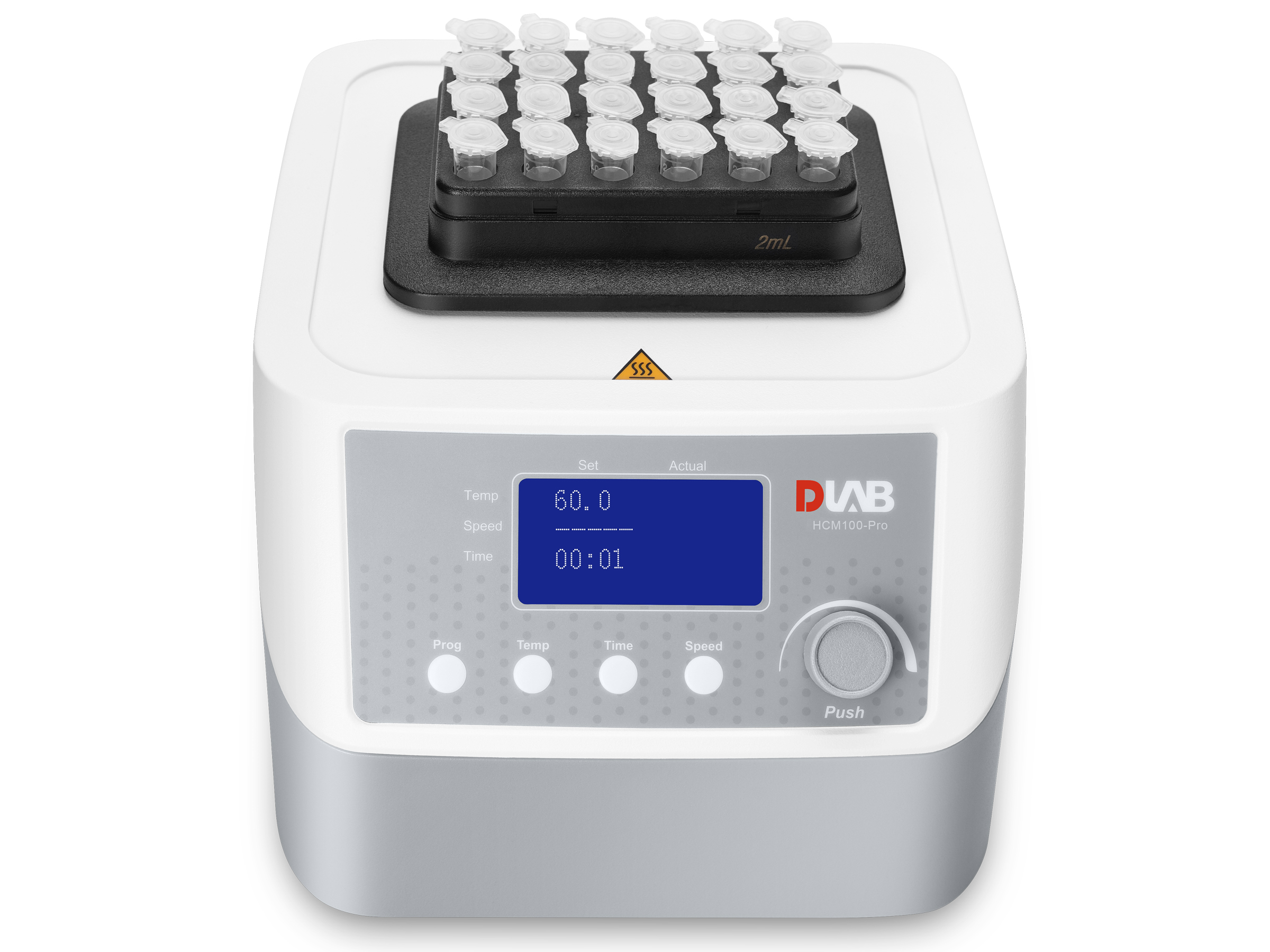

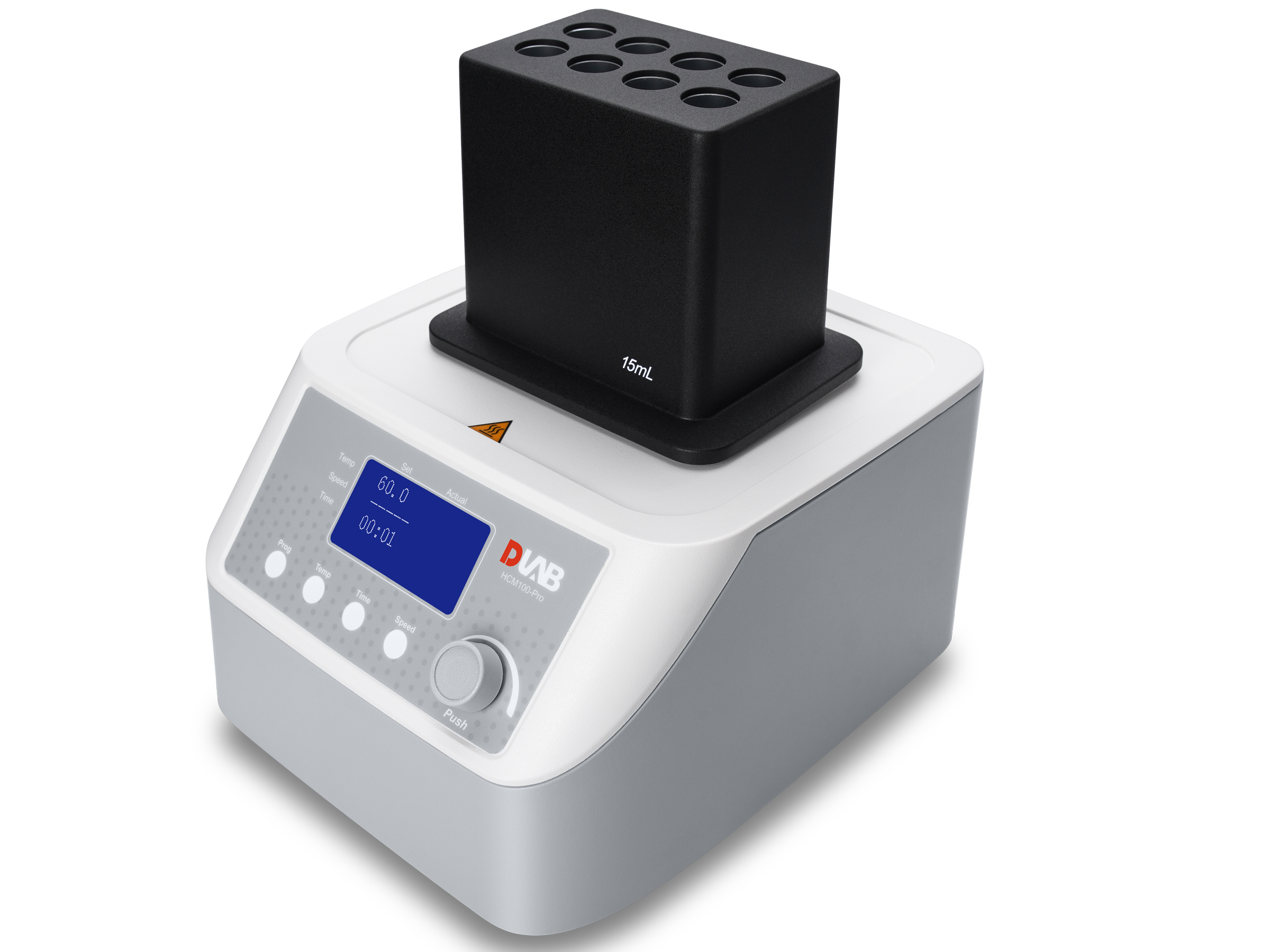

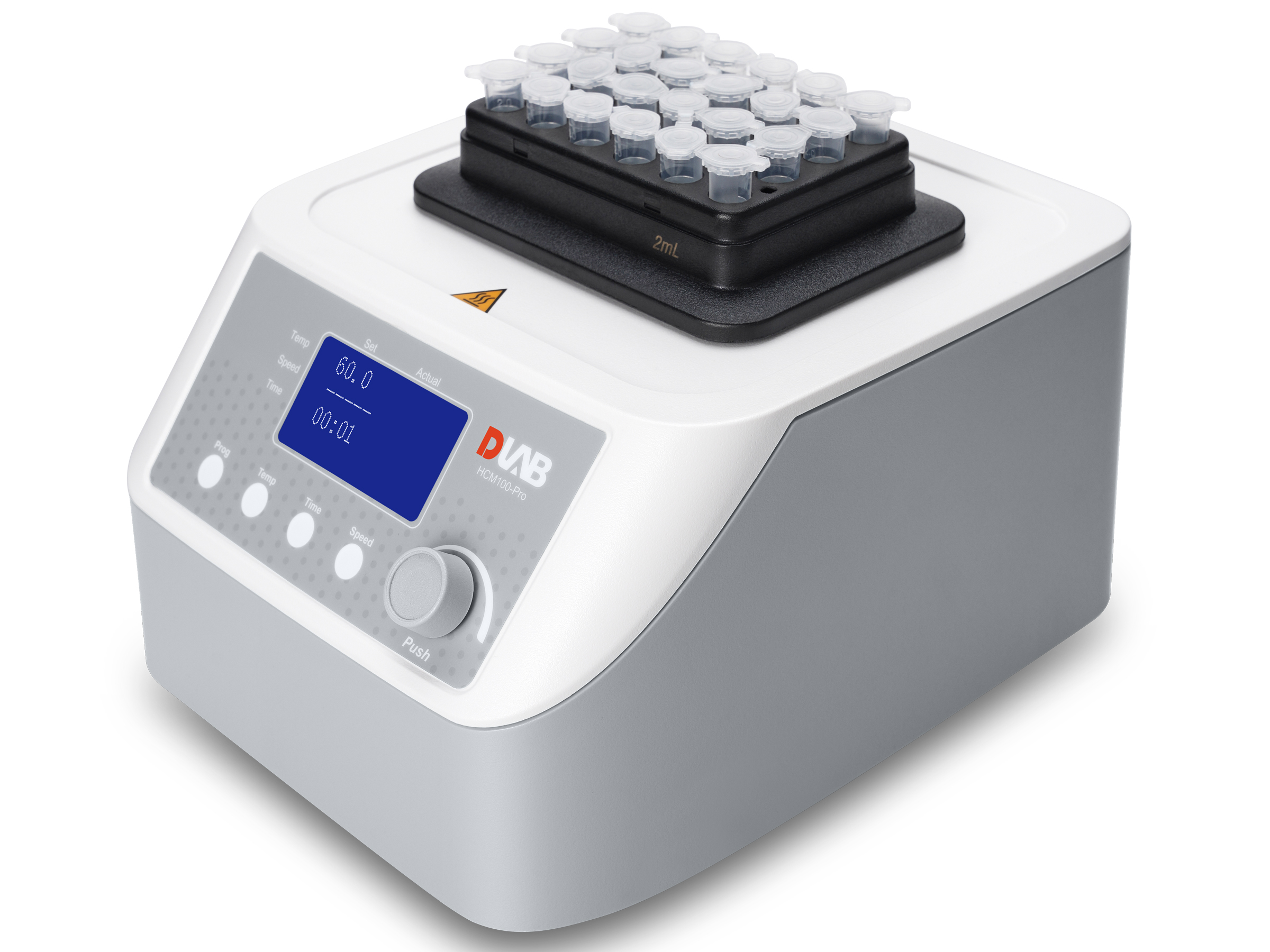

DLAB HCM100-Pro-Heating/Cooling/Mixing
DLAB HCM100-Pro combines the excellent mixing and accurate temperature control, to make your work efficiently and productively
- Fully programmable
- Precise temperature control for heating and cooling
- Real-time display of speed, temperature and time
- Excellent mixing (200-1500rpm)

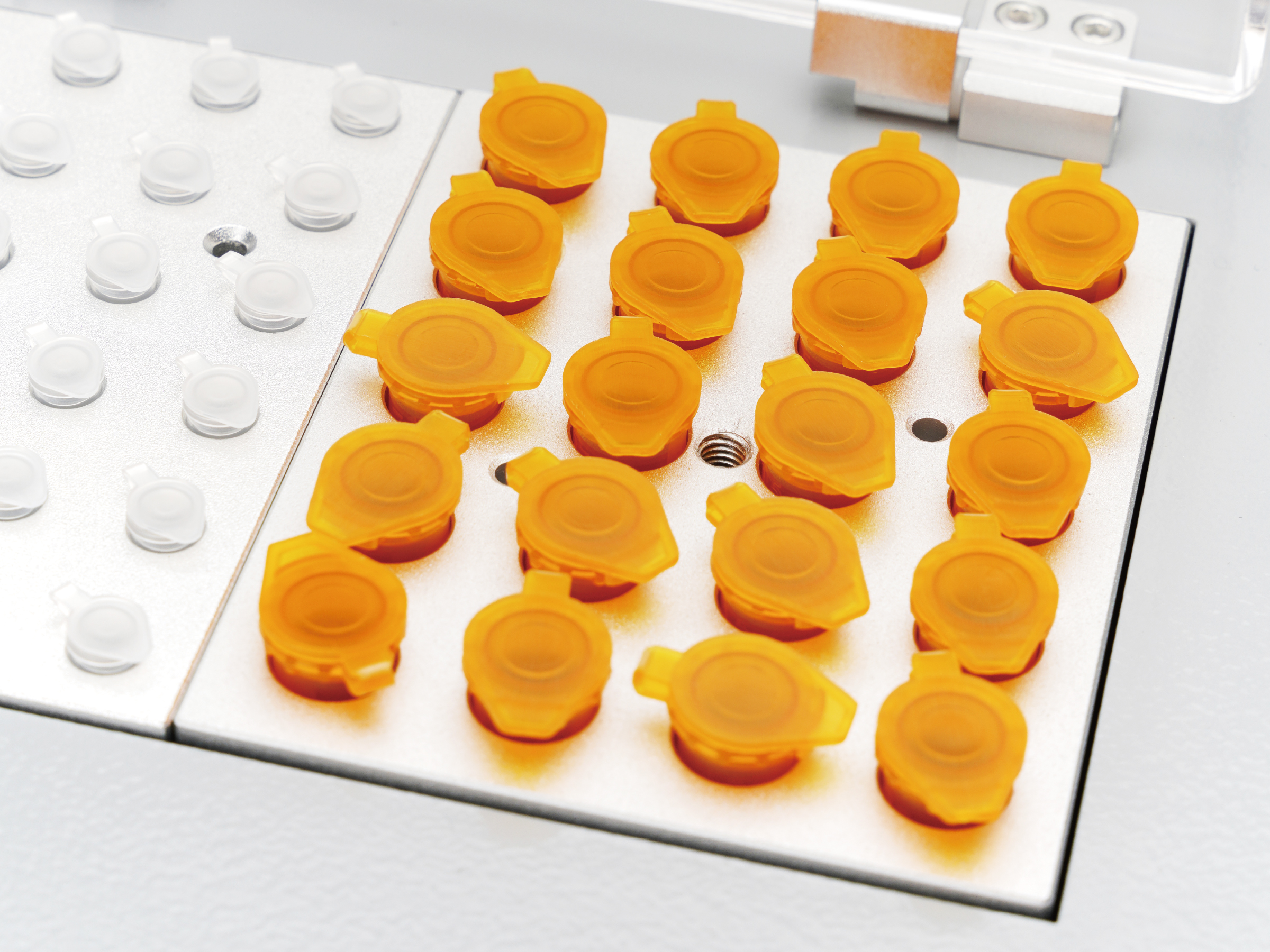

- Quick interchange of blocks without tools and automatic block recognition
- Compatible with most popular tubes
- Block equipped with a lid for heat preservation
- Temperature self-calibration
Technical data;
|
Specifications |
HCM100-Pro |
HM100-Pro |
HC110-Pro |
|
Functions |
Heating,cooling&mixing |
Heating&mixing |
Heating&cooling |
|
Temperature range[℃] |
Room temp 15-100 |
Room temp-100 |
Room temp 25-110 |
|
Temperature Setting range [℃] |
0-100 |
15-100 |
-5-110 |
|
Temperature control accuracy 20-45 [℃] |
±0.5 |
±0.5 |
±0.5 |
|
Temperature uniformity@ 20-45 [℃] |
±0.5 |
±0.5 |
±0.5 |
|
Power [W] |
200 |
200 |
200 |
|
Time setting range |
0min~99h30min |
0min~99h30min |
0min~99h30min |
|
Max Heating speed |
5.5℃/min |
5.5℃/min |
5.5℃/min |
|
Max Cooling speed |
5℃/min（100℃-room temp）0.5℃/min（below room temp） |
- |
2.5℃/min（100℃-room temp） 0.5℃/min（below room temp） |
|
Mixing speed [rpm] |
200-1500 |
200-1500 |
- |
|
Mixing orbit [mm] |
3 |
3 |
- |
|
Display |
TFT |
TFT |
TFT |
|
Program |
|
|
|
|
Overheating protection [℃] |
150 |
150 |
150 |
|
Voltage,Frequency |
110/220V,50/60HZ |
110/220V,50/60HZ |
110/220V,50/60HZ |
|
Dimension[mm] |
200x235X120 |
200x235X120 |
200x235X120 |
|
Weight（kg） |
7.3 |
7.3 |
7.3 |
|
Operating temperature[℃] |
10-40 |
10-40 |
10-40 |
|
Operating humidity[% RH] |
＜80 |
＜80 |
＜80 |
